Description

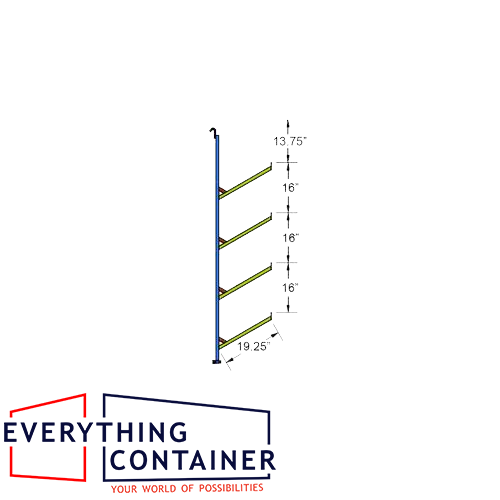

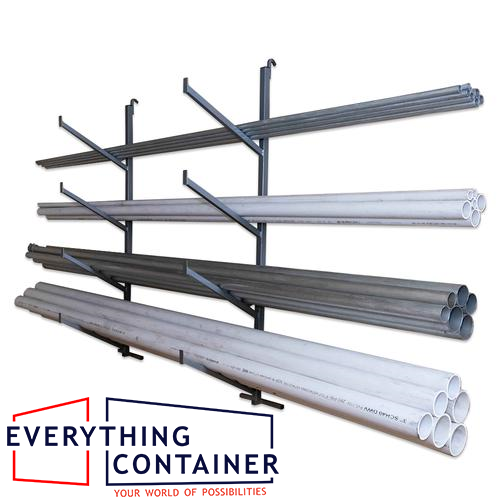

The Container Pipe Rack Bracket (4 Arm) – EC4IF500 has been designed with 4 support arms. These support arms are angled at a 30° angle that provides increased volume capacity and strength. The arms also have a safety roll stop at the end of each arm.
This EC4IF500 model provides up to 762mm of clear floor space below the bottom arm and the floor of a standard height container. The Pipe Rack Bracket (4 Arm) – EC4IF500 does not require any additional support between brackets. You can simply install the brackets prior to loading rigid materials.
The EC4IF500 is sold as a welded, single 4-tier unit. You must use a minimum of 2 units to have one built racking system.

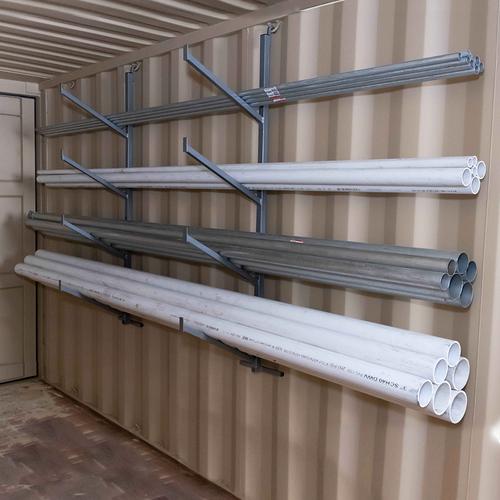

When installing this racking unit, no tools are needed and no modifications need to be made to the container walls. This system can be used multiple times in different containers.
Individual bracket arms are rated at 272kg., each with a total maximum bracket load of 816kg. A two-bracket rack provides a gross capacity of 1633kg.
Purchased Product Includes:
- 1 x Welded Steel 4-tier pipe rack
- 1 x Steel T-shaped Stabilizer
